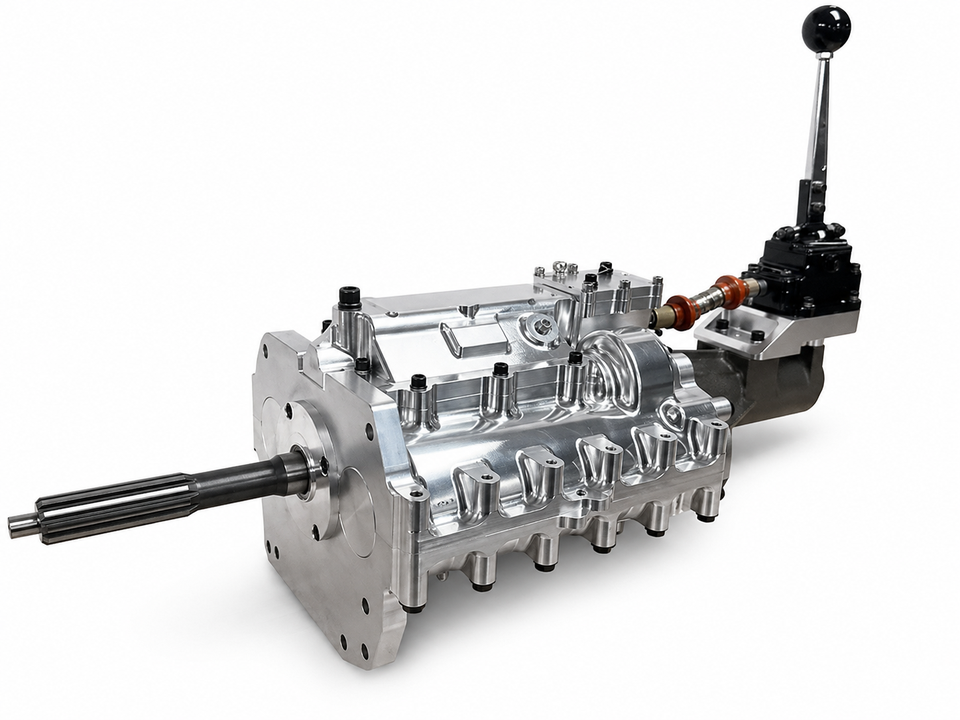

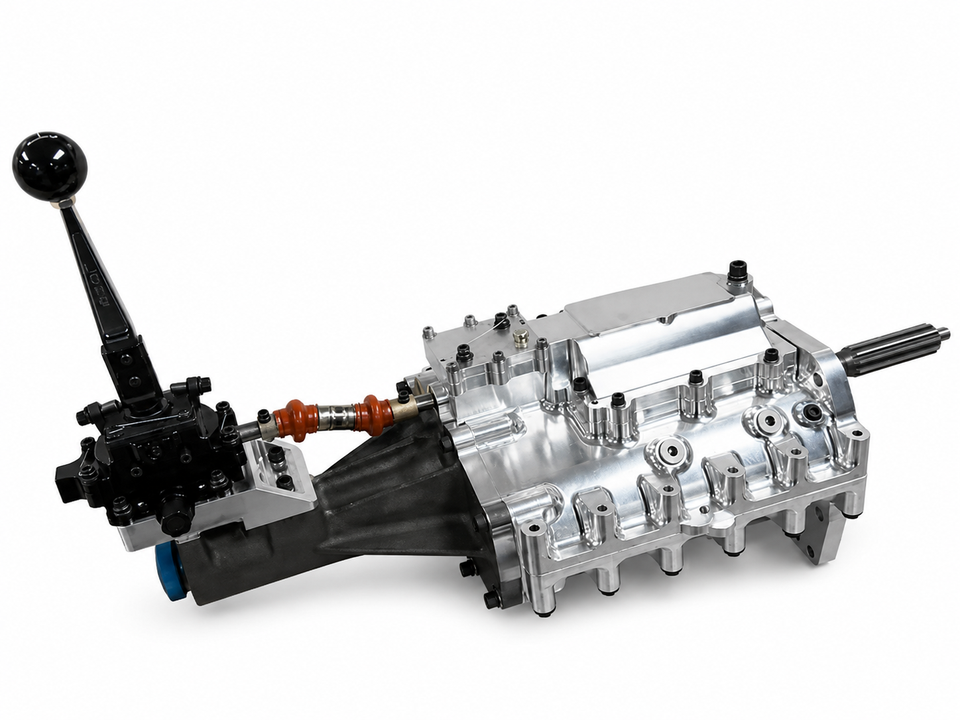

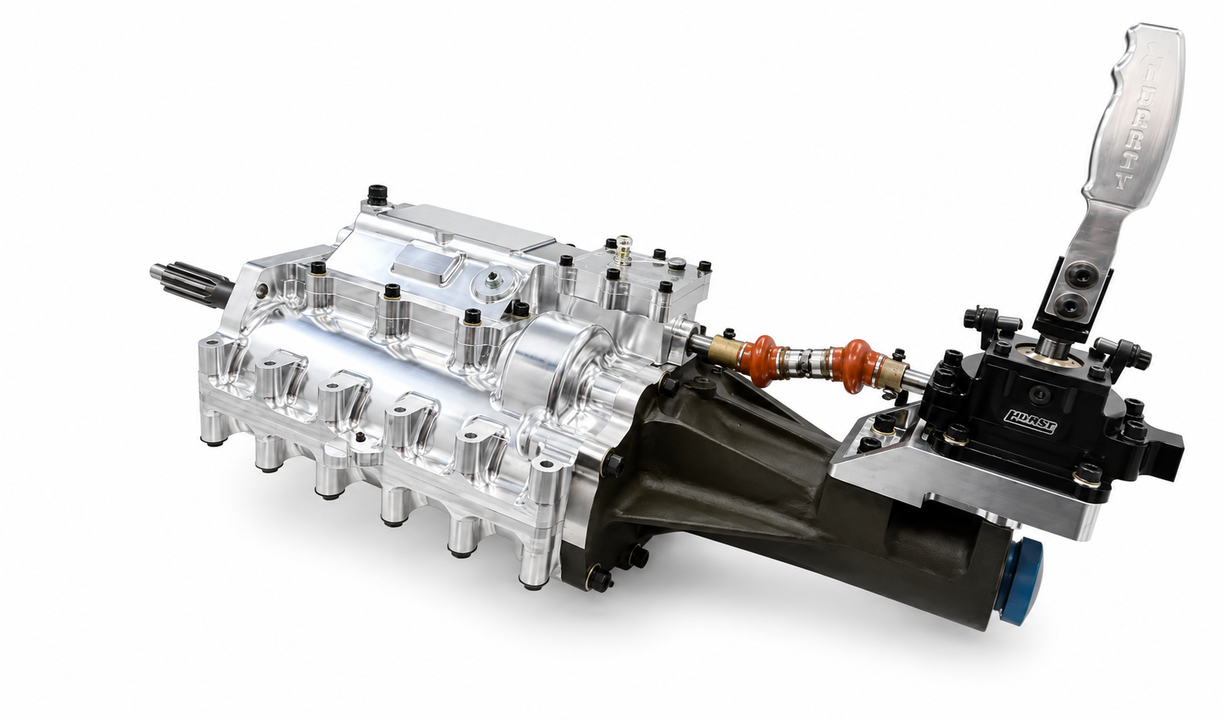

Our H-Pattern Equalizer transmission is a clutch-assisted version of our Extreme Clutchless transmission. It utilizes the dual countershaft concept as well as the same metal properties used in our flagship transmission to allow the unit to hold upwards of 4,000hp while still maintaining stock style sliders that requre power interuption in order to shift. This transmission bridges a gap for both street and strip cars that want to be able to utilize more power while not worrying about breaking a major driveline componenet. The ratio options are based off our Mountain Motor/EZ ratio chart to allow extensive options that fit any combination. Our bolt pattern fits on the face of most available bellhousings but we also offer custom adapter plates as needed.
H-Pattern Equalizer
H-Pattern Equalizer 4-Speed $15,300

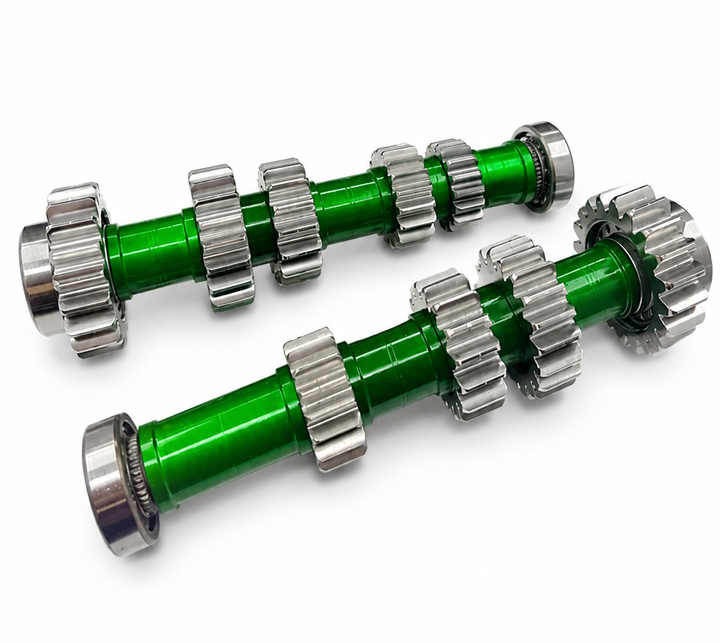

- Dual 300M Splined Cluster Shaft Design
- Billet Aluminum Case
- Magnesium Tailhousing
- Custom Shifter Location

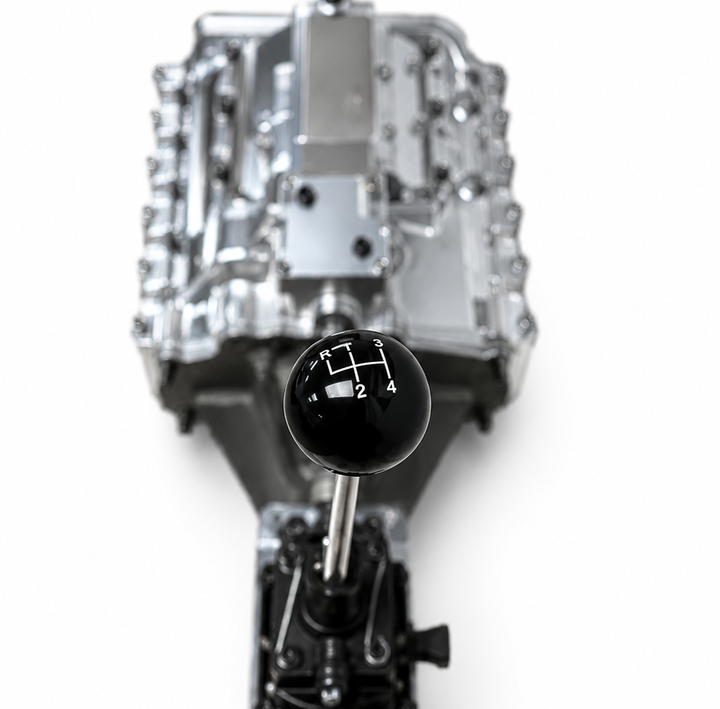

- Optional Billet Ball or Pistol Grip Handle
- Custom 300M Input Shaft
- 300M 32-Spline Output Shaft
- 13.5″ wide x 23.4″ long x 129lbs
- Mountain Motor/EZ Ratio Chart

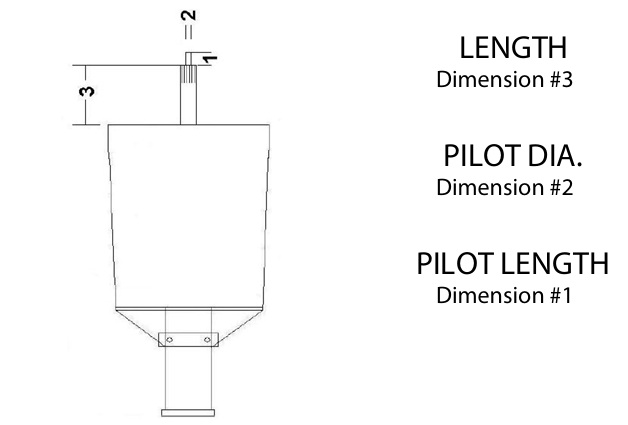

- Front Bolt Pattern Schematic
